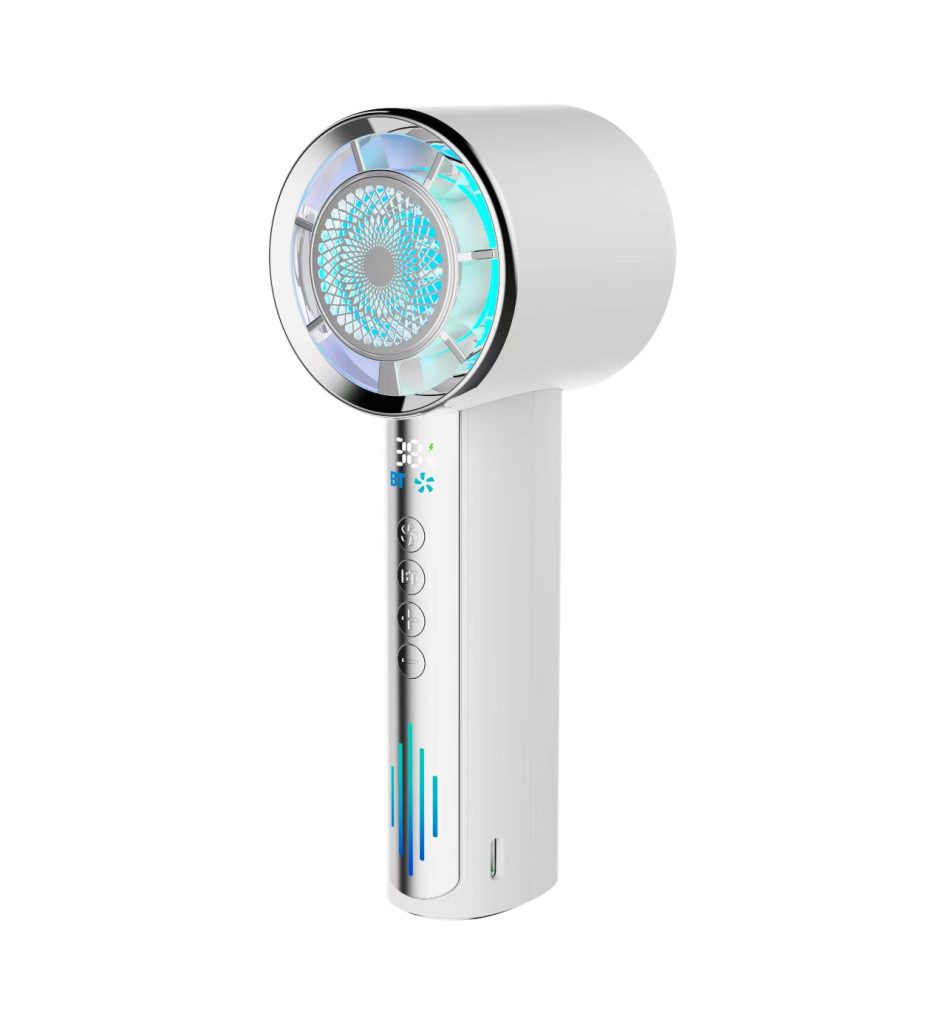

High-Speed Handheld Fan with Bluetooth Speaker

Model: S80-020A
Solution: MOPHA
Version: V1
Available Colors: White, Black, Orange
Product Overview
This multi-functional portable device integrates a high-speed cooling fan, Bluetooth speaker and RGB colorful ambient lighting, ideal for outdoor activities, camping, travel and leisure scenarios.
Basic Specifications
Product Name: High-Speed Handheld Bluetooth Fan
Model: S80-020A
Dimensions: 157×57.5×56.5 mm
Colors: Black, White, Orange
Material: ABS / PC, Steel sheet
Net Weight: 196g
Gift Box Size: 9218959mm
Gift Box Weight: 72g
Total Weight (single set): 252g
Quantity per export carton: 50 pcs
Carton Dimension: 394316492mm (5 layers, 10 pcs per layer)
Carton Gross Weight: 13.1kg
Surface Craft: Texture spraying / Polishing / Electroplating
Logo Craft: Silk printing / Laser engraving
Operating Temperature: 0~45°C
Packing List: Handheld Fan ×1, Charging Cable ×1, User Manual ×1, Color Box ×1
Working Modes: Handheld Fan, Bluetooth Audio Player, RGB Color Light
Technical Parameters
Fan Module
Motor Type: Single-phase Brushless Motor
Rated Voltage: DC 9V (Operating voltage:4.5V-9.5V)
Rated Speed: 8100 RPM ±5%
Air Duct: 53mm air channel, high-speed 5-blade design
Bluetooth Speaker Module
Bluetooth Version: Bluetooth 6.0
Audio Codec: Classic mode: SBC/AAC; Broadcast mode:SBC/LC3
Transmission Distance: 10 meters
Speaker Impedance: 4Ω
Output Power: 4W
Frequency Response: 20~20KHZ
SNR: 103.5db
Speaker Diameter: 30mm
Mainboard Protection
Overload protection: Auto protection when load exceeds rated current
Built-in battery protection circuit
Overvoltage protection (OVP)
Battery Information
Battery Model: 21700 cylindrical lithium cell
Capacity: 3000mAh
Quantity: 1 piece
Total Capacity: 3000mAh
Charging Cable
Interface: USB-A to Type-C
Cable Length: 50CM, support max 1.5A current
Input: 5V-1.5A MAX
No output function
Working Performance Data
Tested under fully charged status (battery voltage 4.0V), for reference only
Fan only

Shutdown standby current:10uA
Bluetooth Speaker Only
Max volume: Working current 420mA, runtime 6.4h
50% volume: Working current 150mA, runtime 18h
Fan + Bluetooth Combined Mode
Fan 100 + Bluetooth Max Volume: 1650mA, runtime 1.6h
Fan 80 + Bluetooth Max Volume: 1310mA, runtime 2.0h
Fan 60 + Bluetooth Max Volume: 1110mA, runtime 2.4h
Fan 40 + Bluetooth Max Volume: 980mA, runtime 2.8h
Fan 20 + Bluetooth Max Volume: 670mA, runtime 4.0h
Fan 20 + Bluetooth 50% Volume: 580mA, runtime 4.6h
Charging Spec
Charging current (power off):1500mA
Full charging time (power off): 2 hours
Button Operation Instructions
Power Button
Long press: Turn fan ON/OFF, default startup gear: Gear 20
Single click: Switch RGB light effects (Cycle: Light1 → Light2 → Light3 → Light off; available only when Bluetooth enabled)
Bluetooth Button
Long press: Turn Bluetooth ON/OFF. Bluetooth name: BT Fan
Single click: Play / Pause Bluetooth music
Double click: Activate / deactivate TWS pairing mode (with prompt tone)
Quadruple click: Clear Bluetooth pairing records for reconnection
Speed Up Button
Single click: Increase fan speed (20 →40→60→80→100)
Long press: Turn up audio volume (0~16 levels, works with Bluetooth ON, with prompt tone)
Double click: Previous track (Bluetooth mode)
Speed Down Button
Single click: Reduce fan speed (100→80→60→40→20→Gear1)
Long press: Turn down audio volume (16→0, works with Bluetooth ON)
Double click: Next track (Bluetooth mode)
Display Indicator Description
Fan icon: Constant ON during fan operation; screen off automatically after 30s for screensaver
Fan gear indicator: 6 levels display (100/80/60/40/20/1)
Volume indicator: 16 adjustable levels (0~16)
Battery percentage display: Real-time power 0-100%
Low battery reminder: Indicator flashes when power ≤9%; prompt tone available under Bluetooth mode
Charging icon: Light on during charging; battery number flashes
Bluetooth icon
Slow flash: Searching for Bluetooth devices
Steady on: Bluetooth connected, power-on prompt tone
TWS mode: Support one master unit paired with one slave unit (synchronous music & light effect)
Master unit: Fast flashing after TWS activated
Slave unit: Steady light after pairing success
After clearing pairing: Bluetooth icon slow flash
Note: Bluetooth will automatically shut down after 3 minutes if no device connected.
Reliability Test Standard
Drop Test
Bare unit: Free fall test from 60cm height to 20mm hardwood board, each surface tested 6 times
Packaged unit: Free fall from 50cm height, test 1 corner, 3 edges and 6 surfaces
Acceptance: All functions work normally; minor shell crack allowed if recoverable. Outer box slight deformation acceptable, box rupture prohibited.
Vibration Test
Frequency:30~50HZ, horizontal sweep amplitude:3mm (30min); vertical sweep amplitude:3mm (30min)
Acceptance: No function failure after test.
High & Low Temperature Storage Test
High temp: 60℃±3℃, humidity 85%±3%, keep 24h, recover 2h then test
Low temp: -20℃±3℃, keep 24h, recover 2h then test
Acceptance: No function failure; battery no swelling, leakage or smoke; housing no deformation or bubbling.
High Temperature & Humidity Operation Test
40℃±2℃, humidity 85%±3%, complete one full charge-discharge cycle
Acceptance: No function failure; battery no swelling, leakage or smoke; housing no deformation or bubbling.
Plug & Pull Test
1000 cycles of plug-in & pull-out test (max 200 cycles/hour)
Acceptance: No structural damage, all functions normal.
Salt Spray Test
Continuous 48-hour spray with 5±1% NaCl solution (30±5℃, humidity＞85%); 24h natural drying after test.
Acceptance: No corrosion, oxidation spots or plating peeling on surface.
